6” - 8” UltimatePlus Chimney

• Available in 6", 7", and 8"
• For transition from black stove pipe to UltimatePlus chimney
• Stainless steel construction
• Hardware pack included

Note: Standard Option is 304 stainless steel. Premium Option (available in 6" only) is 316 stainless steel.

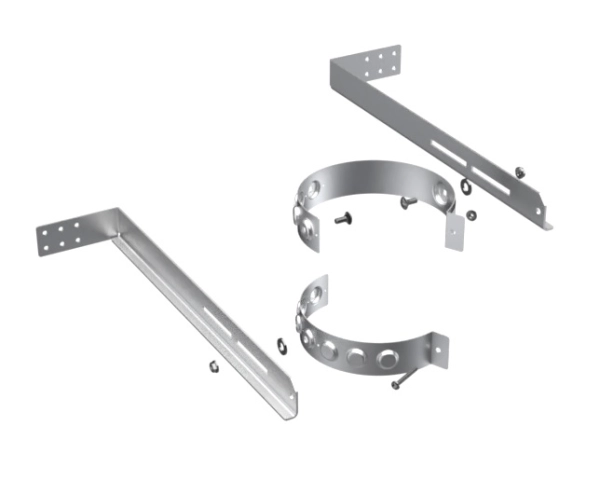

• Used to provide lateral support for the chimney when installed adjacent to a wall
• Sliding Legs provide horizontal adjustability dependent on diameter
• Maintains the minimum 2" clearance to wall
• Required at 8' or closer intervals to stabilize the chimney, whenever it is supported along a vertical wall
• Universal Collar, Sliding Legs, and Hardware Pack included.

• Available in 6", 7", and 8"
• Sleeve provides a decorative finish to the horizontal length within the room when passing through a non-combustible wall
• Matte black finish

• Available in 6", 7", and 8"
• Used to provide a professional finish around the chimney when passing through a non-combustible wall
• Matte black finish

• Designed to deflect snow and ice while preventing unnecessary strain or damage to chimney
• Mounts directly above chimney pipe
• Ships flat and easily assembled on the job site
• Made from heavy-duty 14 gauge galvanized steel

• Available in 6", 7", and 8"
• All Stainless Steel construction
• Professional-grade Latch-Type Locking Mechanism
• Simply latches to positively lock into place - No tools required!

• Double-Wall, 1-inch Insulated Chimney with Locking Band
• Chimney is sized according to the inner diameter and is available in 6", 7", and 8".
• Chimney sections are available in 8", 12", 18", 24", 36", and 48" lengths
• Sectional overlap is 1 1/8"

Note:

1. Standard Option is 304 stainless steel inner and 430 stainless steel outer.
2. Premium Option is 316 stainless steel inner and 304 stainless steel outer.

• Available in 6", 7", and 8" diameters
• Used in combination with straight insulated length
• Used to adjust the system to an exact overall length
• Used also between elbows for a required offset distance
• Locking Band and 4 Stainless Steel Securing Screws included
• 6" diameter inner liner also available in 316 stainless steel
• Requires a minimum 3" overlap

Note: A support must be installed within 5 feet

Available in 6", 7", and 8". Used for a through-the-wall installation with a Base Tee Wall Support or Universal Wall Support. Insulated chimney length is attached to the tee branch using the Locking Band and Stainless Steel Screws included. Maximum height of supported chimney determined by diameter and wall support type. 6" diameter inner liner also available in 316 stainless steel.

• Availablein 6", 7", and 8" diameters
• Available in 15°, 30°, and 45° (Canada only)
• Sold individually
• Used in pairs to offset chimney around obstacles such as joist or truss
• Maximum of 2offsets is permitted
• Must be supported with Universal Roof Support or Universal Wall Support
• Can be rotated to attain optimum positioning and allow chimney to return to correct vertical alignment, prior to installing Locking Bands and screws.
• Locking Band and 3 stainless steel screws included
• 6" diameter inner liner also available in Premium option of 316 stainless steel

• Availablein 6", 7", and 8" diameters
• Available in 15°, 30°, and 45° (Canada only)
• Sold individually
• Used in pairs to offset chimney around obstacles such as joist or truss
• Maximum of 2offsets is permitted
• Must be supported with Universal Roof Support or Universal Wall Support
• Can be rotated to attain optimum positioning and allow chimney to return to correct vertical alignment, prior to installing Locking Bands and screws.
• Locking Band and 3 stainless steel screws included
• 6" diameter inner liner also available in Premium option of 316 stainless steel

• Availablein 6", 7", and 8" diameters
• Available in 15°, 30°, and 45° (Canada only)
• Sold individually
• Used in pairs to offset chimney around obstacles such as joist or truss
• Maximum of 2offsets is permitted
• Must be supported with Universal Roof Support or Universal Wall Support
• Can be rotated to attain optimum positioning and allow chimney to return to correct vertical alignment, prior to installing Locking Bands and screws.
• Locking Band and 3 stainless steel screws included
• 6" diameter inner liner also available in Premium option of 316 stainless steel

• Available in 6", 7", and 8"
• Used to close the base of an Insulated Tee
• Easily removed for chimney maintenance or inspection
• Insulated to maintain flue gas temperatures
• 6" diameter Inner Liner also available in 316 stainless steel

• Available in 6", 7", and 8"
• Used where the chimney passes through a flat roof
• Vented flashing with integrated spacers ensures ventilation
• Storm Collar and Roof Radiation Shields included

Note: Roof Radiation Shields are optional in Canada.

• Available in 6", 7", and 8"
• Used on corrugated or tiled roofs, designed to be molded to uneven roof surfaces
• Used where the chimney passes through a pitched roof
• Vented flashing with integrated spacers ensures ventilation
• Available in pitches of 1/12 to 7/12, 8/12 to 12/12
• Storm Collar and Roof Radiation Shields included

Note: Roof Radiation Shields are optional in Canada.

• Available in 6", 7", and 8"
• Used where the chimney passes through a pitched roof
• Vented flashing with integrated spacers ensures ventilation
• Available in pitches of 1/12 to 7/12, 8/12 to 12/12, and 12/12 to 21/12
• Storm Collar and Roof Radiation Shields included

Note: Roof Radiation Shields are optional in Canada.

• Available in 6", 7", and 8"
• Used in conjunction with roof flashing to weather proof the system
• Storm Collar is included with all Roof Flashings

• Available in 6"

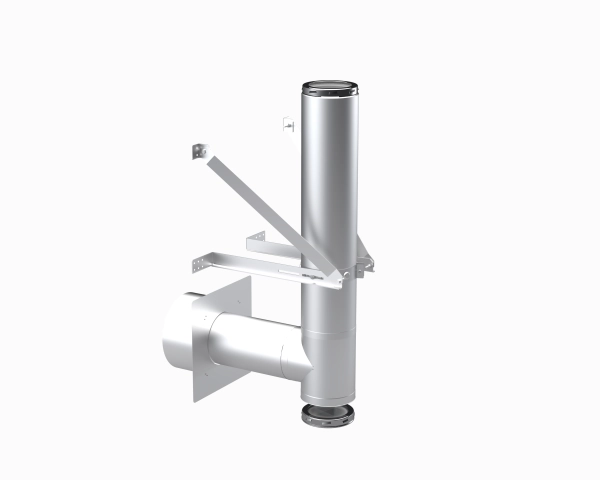

• Used for a wall-supported chimney system connecting to an Insulated Tee and running vertically up the exterior wall to terminate above the roof line
• Tee is positioned on top of the Adjustable Base Tee Wall Support
• Kit includes:
  • Insulated Tee & Insulated Tee Cap
  • Smoke Pipe Adapter
  • Adjustable Base Tee Wall Support
  • Universal Wall Band
  • Insulated Wall Thimble
  • Decorative Sleeve
  • Round Top Termination (304 SS)

• Available in 6"
• Used for a wall-supported chimney system connecting to an Insulated Tee and running vertically up the exterior wall to terminate above the roof line
• Tee can be positioned above or below Wall Support
• Kit includes:
  • Insulated Tee & Insulated Tee Cap
  • Smoke Pipe Adapter
  • Universal Wall Support
  • Universal Wall Band
  • Insulated Wall Thimble
  • Decorative Sleeve
  • Round Top Termination (304 SS)
  • Hardware Packs

• Available in 6"
• Used when the chimney is supported at a flat ceiling, enters an attic space and then out through the roof
• Kit includes:
  • Round Support with Detached Trim
  • Smoke Pipe Adapter
  • Adjustable Attic Insulated Shield
  • Round Top Termination

• Available in 6", 7", and 8"
• Used to prevent rain and debris from entering the chimney
• Lower skirt deflects wind for proper chimney draft
• Designed for easy installation and removal for inspection and cleaning
• Cinch band holds the Round Top firmly in place

Note: Standard Option is 304 stainless steel. Premium Option (available in 6" only) is 316 stainless steel.

• Available in 6", 7", and 8" diameters
• Two-piece overlapping design adjusts from 12" up to 22" height to accommodate deeper levels of insulation
• Insulated to prevent heat loss or cold air infiltration
• Mineral Wool Insulation Blanket, Base Plate, and Collar included
• Must be installed where the chimney enters the attic space
• Designed to keep insulation away from the chimney and to maintain the mandatory 2" clearance

• Available in 6", 7", and 8"
• Required where the chimney passes through a combustible wall
• Accommodates 7" to 12" wall thickness, can be trimmed for thinner walls
• Insulated to prevent heat loss or cold air infiltration
• Mineral Wool Insulation Blanket and Matte Black Finish Trim Collar included

• Available in 6", 7", and 8"
• Used at the ceiling level where the chimney passes through a floor or into an attic space

• Available in 6", 7", and 8"
• Can be used as alternative to the standard Firestop
• Includes a radiation shield
• Used at the ceiling level where the chimney passes through a floor or into an attic space

• Available in 6", 7", and 8" diameters
• Provides a secure attachment for adapting the UltimatePlus chimney to a masonry fireplace
• Can be used with factory-built fireplace certified for use with UltimatePlus
• Hardware Pack included

• Available in 6", 7", and 8"
• Used to support the chimney on a slab, floor, or joist
• Includes a tightening collar that locks around the chimney
• Supports 32' of chimney
• Support Plate, Support Band, and Hardware Pack included

• Available in 6", 7", and 8" diameters
• Used when insulated chimney passes up through a ceiling opening into an attic space
• Suited for flat, vaulted, or cathedral ceilings; and multistory applications
• Bottom of the Pass-Through also functions as a firestop
• Top to Square-to-Round Collar serves as an Adjustable Attic Insulation Shield
• Adjustable from 24" up to max 46" when used with Reduced Clearance Extension
• Insulated to prevent heat loss or cold air infiltration
• Mineral Wool Insulation Blanket and Square-to-Round Collar included

• Available in 6", 7", and 8"
• Available in 30°: 45° (Canada Only)
• Used only with wood-burning fireplaces that have been certified for use with UltimatePlus chimney system
• Designed for use when the chimney passes through a wall at an angle
• Factory Insulated to maintain the thermal envelope of your home - 3" thick

• Available in 6", 7", and 8"
• Available in 30°; 45° (Canada only)
• Used only with wood-burning fireplaces that have been certified for use with the UltimatePlus chimney system
• Designed for use where the chimney passes through a wall at an angle

• Available in 6", 7", and 8"
• Used where the chimney passes through a custom chase top flashing
• Vented cone with integrated spacers at top to ensure ventilation
• Tested to meet vented flashing requirements
• Bottom tabs easily attach to custom chase flashings
• Storm Collar and Roof Radiation Shields included

• Available in 6", 7", and 8"
• Used to provide added stability to a chimney that protrudes from 5' to 13' above a roof
• Guy Wire Band includes three attaching tabs for securing guy wire (not included)

• Available in 6", 7", and 8"
• Used to support chimney with flat, vaulted, or cathedral ceiling
• Certified to reduce clearances from 2" to 1" for any portion of chimney shielded within the support box
• Supports up to 60'
• Insulated to prevent heat loss or cold air infiltration
• Smoke Pipe Adapter, Mineral Wool Insulation Blanket, Finishing Trim, Square-to-Round Collar and Hardware Pack are included
• Adjustable from 24" up to 46" with Reduced Clearance Extension

• Available in 6", 7", and 8"
• Used to extend the height of the Insulated Reduced Clearance Support (IRCS) for an additional 22"
• Matte black finish
• Hardware pack included

• Available in 6", 7", and 8"
• Used to support chimney with flat, vaulted, or cathedral ceiling
• Supports up to 60'
• Designed for 16" on-center framing construction
• Decorative matte black finish
• Smoke Pipe Adapter, Finishing Trim, and Hardware Pack are included
• Adjustable from 24" up to 46" with Square Cathedral Support Extension

• Available in 6", 7", and 8"
• Used to extend the height of the Square Cathedral Ceiling Support for an additional 22"
• Matte black finish
• Hardware pack included

• Available in 6", 7", and 8"
• Round Finishing Support with integrated Round Trim Collar for use on flat ceiling
• Supports up to 75'
• Smoke Pipe Adapter and Hardware Pack are included

• Available in 6" ONLY
• Round Finishing Support with removable Round Trim Collar for use on flat ceiling
• Supports up to 75'
• Smoke Pipe Adapter and Hardware Pack are included

• Available in 6", 7", and 8"
• Used to support chimney system at the base of the installation when using Insulated Tee
• Supports up to 63' of chimney (6")
• Maintains the minimum 2" clearance to wall and provides an additional 4 7/8" adjustability
• Support Plate, Wall Brackets, and Hardware Pack included

• Available in 6", 7", and 8"
• Used as supplemental support when chimney system height exceeds maximum height allowed by Wall Support
• Supports up to 63' of chimney (6")
• Maintains the minimum 2" clearance to wall and provides an additional 4 7/8" in adjustability

• Adjusts to fit 6", 7", and 8" chimney
• Designed to provide support at the roof and adjusts to any roof pitch
• Also used to provide support for an offset
• Will support up to 34' of 6" chimney, 27' of 7" chimney, or 24' of 8" chimney
• Universal Collar, Roof Brackets, and Hardware Pack included

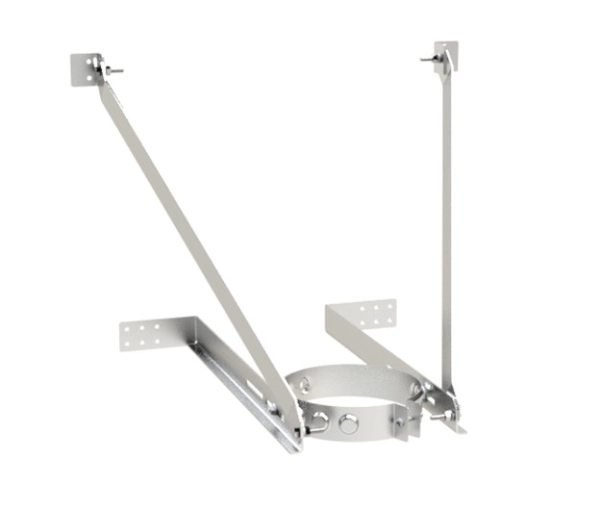

• Designed to support a vertical wall installation above the tee or above an offset
• Also serves as an intermediate support
• Maintains the minimum 2" clearance to wall and provides an additional 2 3/4" in adjustability
• Will support up to 28' of 6" chimney
• Support Brackets, Support Band, and Hardware Pack included
